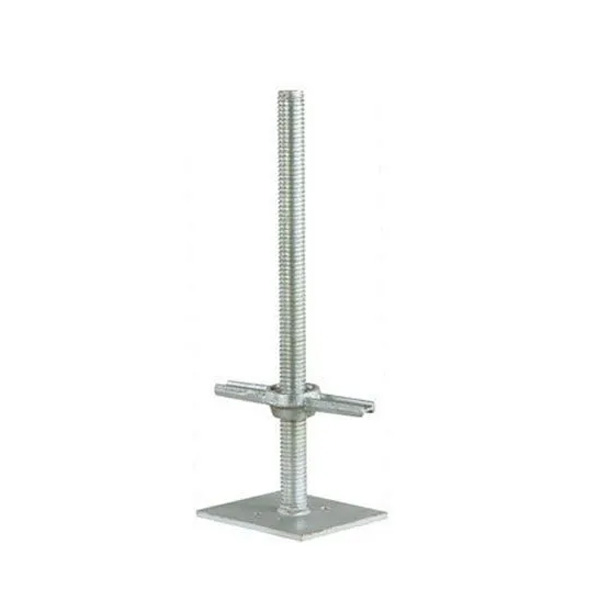

Base Jack
Adjustable Scaffolding Base Jack for Stability and Load Distribution
Technical Specifications
| Parameter | Details |
|---|---|
| Material | Mild Steel (MS) / High Tensile Steel |
| Stem Diameter | 30mm / 32mm (as per requirement) |
| Stem Length | 350 mm / 450 mm / 600 mm (Customizable) |
| Base Plate Size | 150mm x 150mm / 120mm x 120mm (as per requirement) |
| Thread Type | Roll Thread / Cut Thread |
| Surface Finish | Hot-Dip Galvanized / Painted |
| Load Capacity | Up to 4-6 tons (depending on size & material) |
