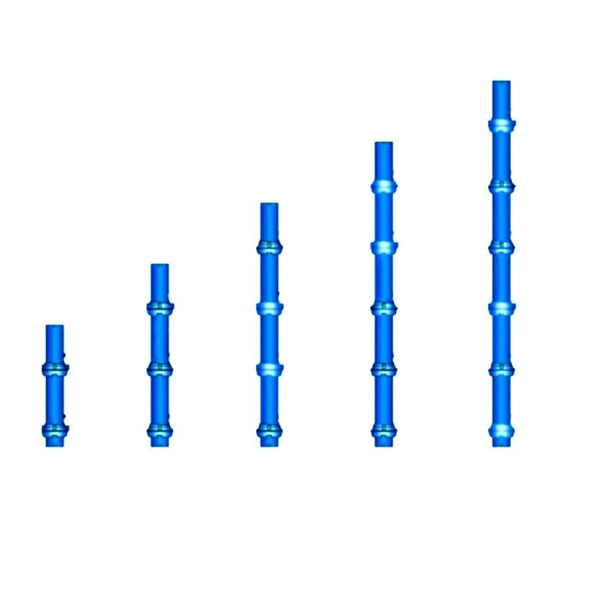

Cuplock Standard / Vertical
Specifications:
| Parameter | Details |
|---|---|
| Material | High-quality MS (Mild Steel) / High Tensile Steel |
| Tube Diameter | 48.3mm OD (Outer Diameter) |
| Thickness | 3.2mm / 3.6mm / Custom as per requirement |
| Available Sizes | 0.50m, 1.00m, 1.50m, 2.00m, 2.50m, 3.00m |
| Cup Joints Spacing | 500mm intervals |
| Finish Options | Painted / Hot Dip Galvanized (HDG) |
| Weight | Varies as per size and thickness |
| Standards | IS 1161, EN 10219, BS 1139 |
