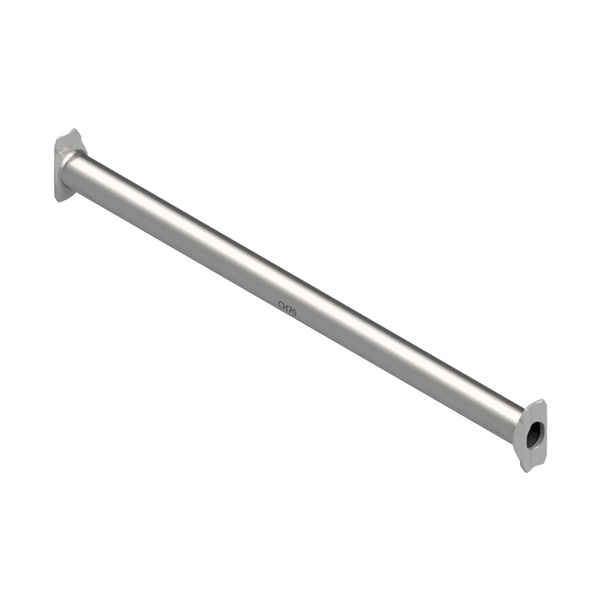

Cuplock Ledger / Horizontal
Specifications:
| Parameter | Details |
|---|---|
| Material | High-quality MS (Mild Steel) / High Tensile Steel |
| Tube Diameter | 48.3mm OD (Outer Diameter) |
| Thickness | 3.2mm / 3.6mm / Custom as per requirement |
| Available Sizes | 450 mm, 950 mm, 1150 mm, 1450 mm, 1750mm, 1950 mm |
| End Connection | Forged Ledger Blades welded at both ends |
| Finish Options | Painted / Hot Dip Galvanized (HDG) |
| Weight | Varies as per size and thickness |
| Standards | IS 1161, EN 10219, BS 1139 |
